Wet / Slurry Magnetic Separators

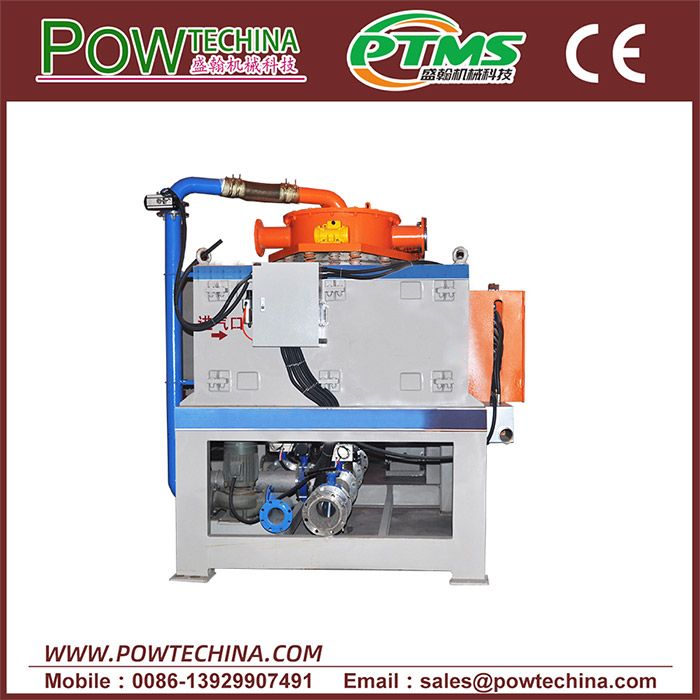

Water-Cooled Electromagnetic Slurry Magnetic Separator
Water-Cooled Electromagnetic Slurry Magnetic Separator by PTMS (Foshan Powtech). Wet electromagnetic slurry separators for kaolin, feldspar, quartz slurry and ceramic glaze. Water- or oil-cooled coils keep the magnetic field stable during continuous operation.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers six water-cooled slurry models, W500L, J500 and D500 to D1000: magnetic field strength 3–5, magnetic cavity diameter 500–1000, maximum coil power 30–180, yield 20–200 and host weight 6,500–29,000 kg (D750 16,350 kg; D1000 29,000 kg); units for other figures are not stated in the original data sheet. Used for wet slurry iron removal in kaolin, feldspar, quartz and ceramic glaze lines.
| Model | Magnetic field strength | Input voltage | Maximum output current | Maximum coil power | Insulation class | Cooling method | Magnetic cavity diameter | Pipe size | Yield | Overall dimensions | Host weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W500L | 3 | 380 | 1200 | 30 | E | Water-cooling | 500 | 4 | 20–50 | 1500 × 2050 × 2350 | 6500 |
| J500 | 5 | 380 | 1400 | 75 | E | Water-cooling | 500 | 4 | 30–70 | 2300 × 1850 × 3000 | 14100 |
| D500 | 5 | 380 | 1400 | 45 | E | Water-cooling | 500 | 4 | 20–50 | 2050 × 1850 × 2800 | 9580 |
| D600 | 5 | 380 | 2100 | 75 | E | Water-cooling | 600 | 4 | 30–80 | 2450 × 2100 × 2650 | 14730 |
| D750 | 5 | 380 | 1400 | 75 | E | Water-cooling | 750 | 4 | 40–80 | 2900 × 2400 × 3100 | 16350 |
| D1000 | 5 | 380 | 2500 | 180 | E | Water-cooling | 1000 | 8 | 80–200 | 3000 × 2610 × 3200 | 29000 |
Units for Magnetic field strength, Input voltage, Maximum output current, Maximum coil power, Magnetic cavity diameter, Pipe size, Yield, Overall dimensions are not stated in the original PTMS data sheet; contact us to confirm.
Product details
Product Profile
The automatic iron removal machine for water-cooled electromagnetic slurry is a new type of high efficiency iron removal machine. The deionized water is circulated in the hollow copper tube through a circular pump, which takes away the heat generated by the energized copper tube.
Based on this special structure, the water-cooled electromagnetic slurry automatic iron removal machine has the following advantages:
High magnetic induction; Internal temperature rise small long-term operation magnetic induction strength is not easy to decline; High productivity per unit of working time; To the ore to the degree of the ore, the concentration of wide adaptability; High mineral processing efficiency; Easy to operate and maintain.
Switch on the power supply device and turn on the magnetic charging device.
After a few minutes(can be set as needed), close the feed valve and the pulping valve, open the pulping valve, and discharge the remaining slurry in the iron removal machine through the pulping valve.
Magnetic disconnection, close feed valve, and pulping valve.
Open the discharge iron valve and discharge the iron-containing material adsorbed in the magnetic medium.
Non-metals: magazines for the purification of minerals such as quartz, feldspar, and Kaolin.
Black metals: hematite, fake hematite, limonite, siderite, chromite, manganese, etc..
Non-ferrous metals: separation of wolframite from durian and other minerals.
Rare metals: recovery of minerals such as tantalum niobite and monazite.
Other industries: Iron and steel mines, wastewater treatment of power plants to treat contaminated chemical materials.
