7A160 Wet Magnet

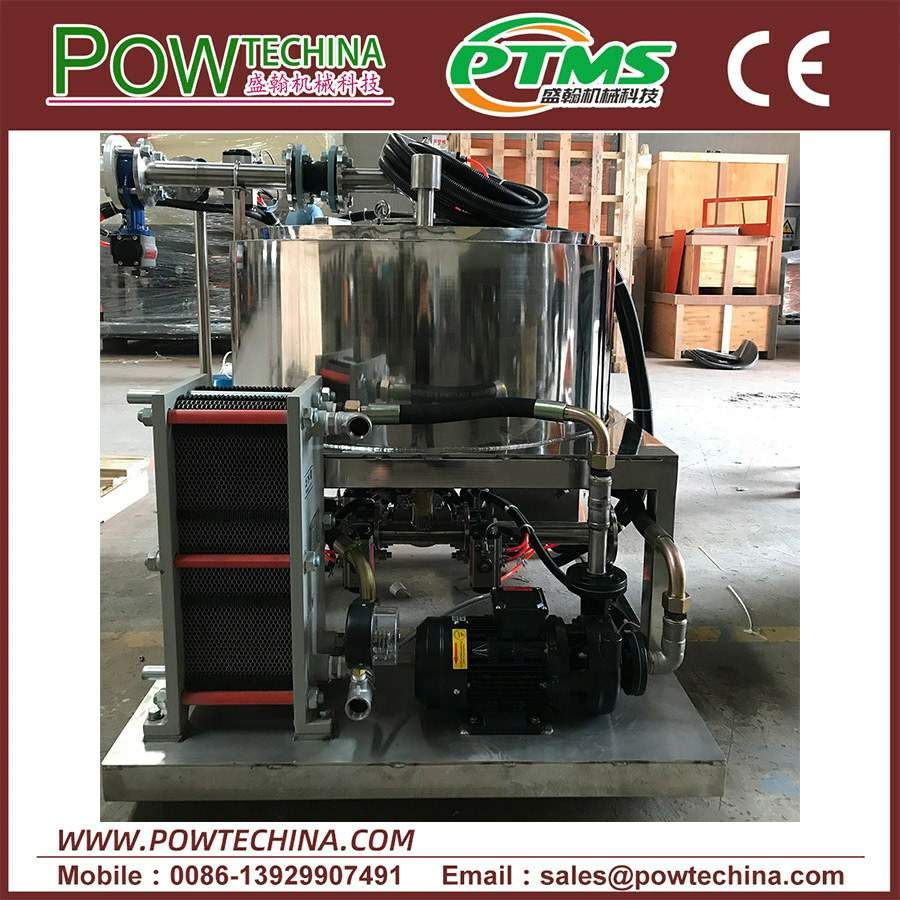

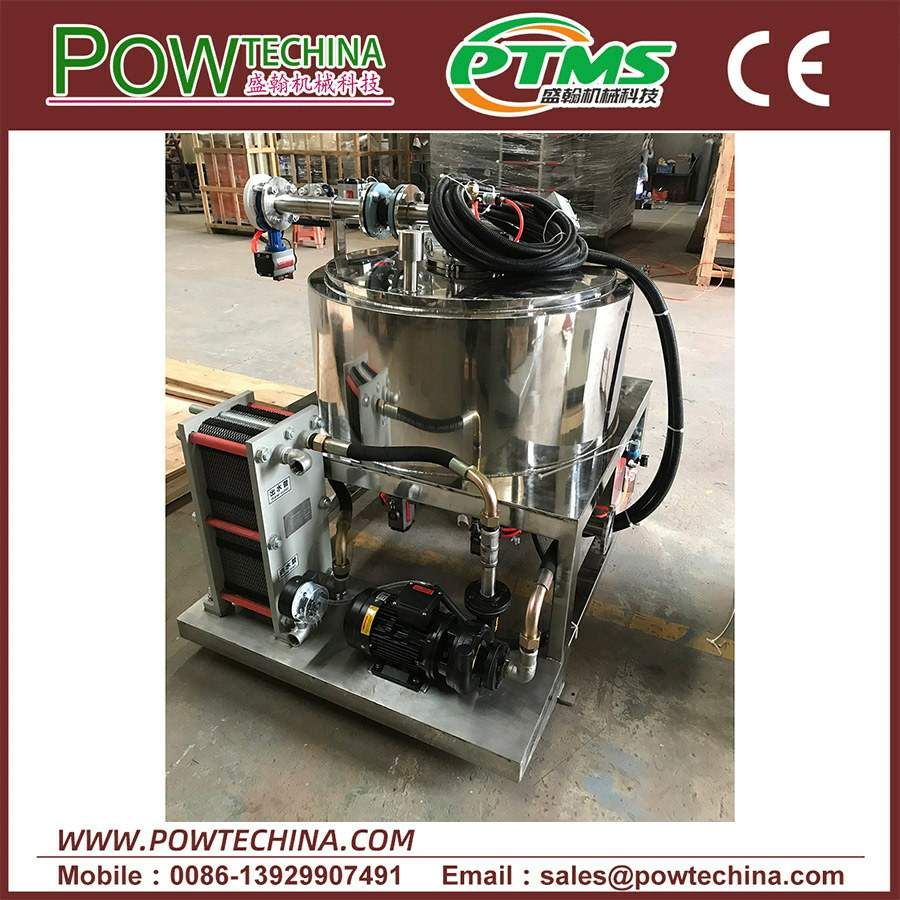

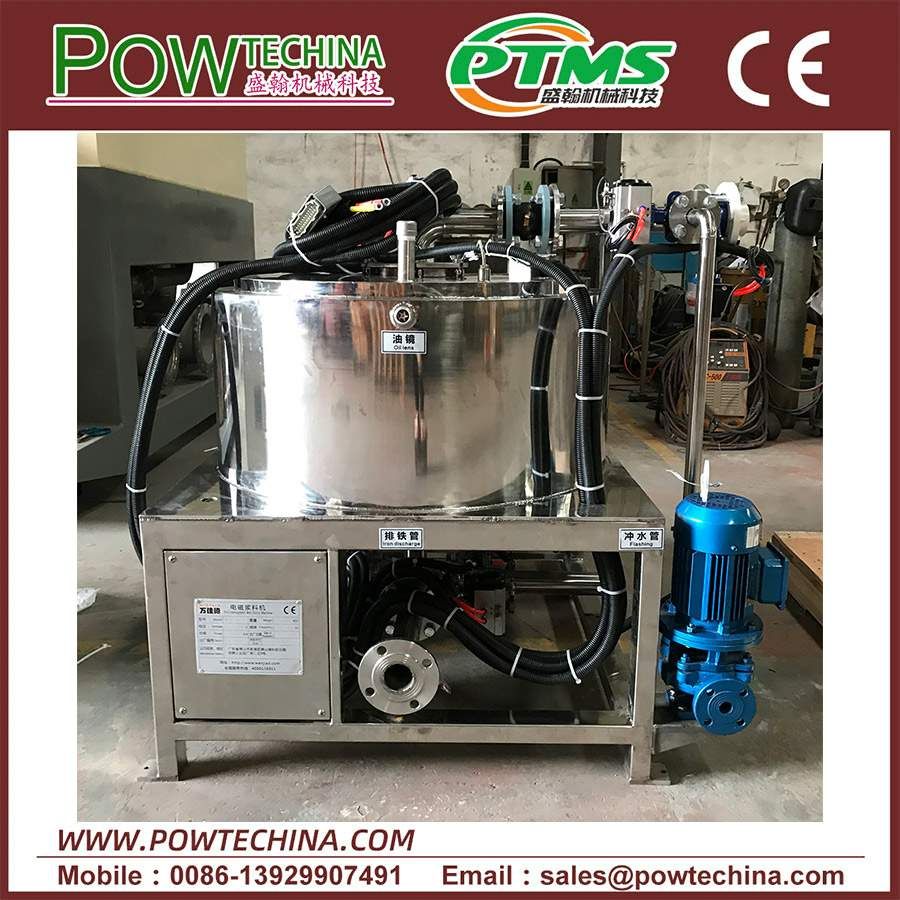

7A160 Wet Magnet by PTMS (Foshan Powtech). Wet electromagnetic slurry separators for kaolin, feldspar, quartz slurry and ceramic glaze. Water- or oil-cooled coils keep the magnetic field stable during continuous operation.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
The 7A160 Wet Magnet has a theoretical magnetic field strength of 30,000 Gauss, 7 kW maximum coil power at 380 V AC input, double water and oil cooling, a 300 mm magnetic cavity, 3-inch pipe size and a production rate of 10–30 m³/h. It is used for iron removal from slurry below 40 mesh, such as kaolin, feldspar, quartz slurry and ceramic glaze.
| Model | Theoretical magnetic field strength (Gauss) | Input voltage (V AC) | Maximum output current (A DC) | Maximum coil power (kW) | Insulation class | Cooling method | Magnetic cavity diameter (mm) | Pipe size (in) | Production rate (m³/h) | Use |
|---|---|---|---|---|---|---|---|---|---|---|
| 7A160 | 30,000 | 380 | 16 | 7 | E | double water and oil cooling | 300 | 3 | 10–30 | for iron removal of slurry below 40 mesh |
Product details
Product description
High magnetic field, magnetic field, uniform distribution, high gradient, iron removal effect; forced cooling system, good circulation, can reduce temperature by about 20℃, extend the service life; the mesh by special material refined, off the excitation coil power supply, no magnetic retention, easy iron removal; iron removal is convenient and fast, completely no residue.
Operation process
Turn on the power supply device, open the inlet and outlet valves, close the return valve and drain valve, and open the charging device.When all the pulp passes through the slurry iron removal machine, close the inlet valve and outlet valve, open the return valve, discharge the remaining slurry in the machine through the return valve, and then break the magnetic, close the inlet valve, outlet valve and return valve, open the iron valve, add water to rinse the iron substance adsorbed in the magnetic medium.
