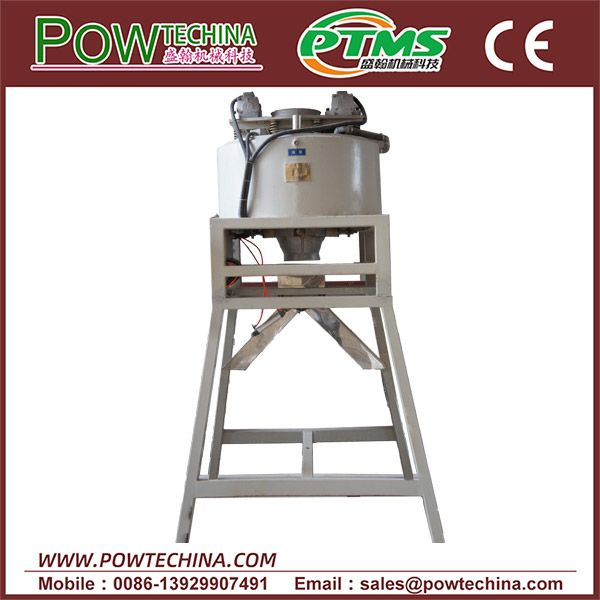

Graphite Magnetic Separator
Graphite Magnetic Separator by PTMS (Foshan Powtech). Iron removal for lithium battery materials: lithium cobalt oxide, lithium manganate, lithium iron phosphate, graphite and carbon materials.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data for the Graphite Magnetic Separator: background magnetic field 40,000 Gauss, AC 380 V ±10% input, DC 500 V ±10% output, 220 mm magnetic cavity, body diameter 400 mm, output 500–1500 kg/h depending on the stickiness of the powder, about 1 m³/h cooling water and 1200 kg body weight. Used for iron removal from graphite and other lithium battery carbon materials.
| Model | Background magnetic field (Gauss) | Input voltage (V) | Output voltage (V) | Output (kg/h) | Insulation class | Magnetic cavity diameter (mm) | Water consumption (m³/h) | Body weight (kg) | Body diameter (mm) | Overall dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Graphite Magnetic Separator | 40000 | AC 380 ±10% | DC 500 ±10% | 500–1500 (depending on the stickiness of the powder) | E | 220 | About 1 (at 30 °C water temperature) | 1200 | 400 | 1000 × 1400 × 2300 |
Product details
The electromagnetic dry powder machine mainly aims at the new type of iron removing machine developed by the cathode and the negative powder material. Its magnetic system is characterized by the most magnetic poles of the wrapping angle. The absolute value of the magnetic flux density in the machine selection area is more average. The separation effect of the magnetic system is played. The different field strength can be designed according to the different properties of the ore. In addition, the electromagnetic dry powder machine is selected in the separation process. There is no need to overcome the effect of gravity and the resistance of raw materials. When the non magnetic minerals are separated from the magnetic field, the minerals can be well separated from the magnetic barrel under the action of gravity, and the electromagnetic drying machine increases the mechanical vibration device. It can not only improve the effect of iron removal, but also facilitate the realization of iron abandoning.
