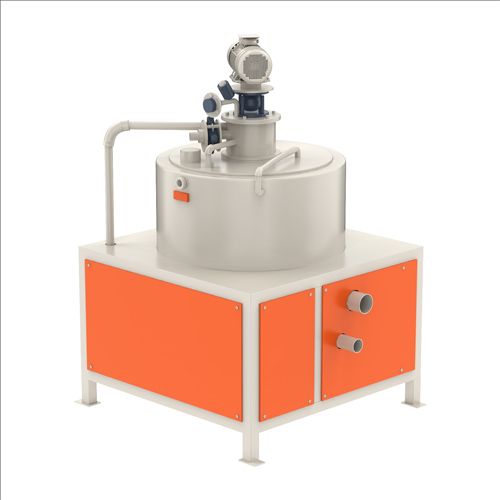

Electromagnetic Magnetic Separator for Ceramic Glaze
Electromagnetic Magnetic Separator for Ceramic Glaze by PTMS (Foshan Powtech). Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers seven ceramic glaze models, WS1.5K160 to WS20K400: magnetic separation intensity 2–3.5 T, maximum coil power 1.5–20 kW (220 V input for WS1.5K160, 380 V for the others), water and oil cooling, magnetic cavity diameter 89–400 mm and production 0.2–60 t (as published). Used to remove iron from ceramic glaze and slip before firing.
| Model | Magnetic field strength (T) | Input voltage (V) | Maximum output current (A) | Maximum coil power (kW) | Insulation class | Cooling method | Magnetic cavity diameter (mm) | Yield (t) | Overall dimensions (mm) | Host weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| WS1.5K160 | 2.5 | 220 | 7 | 1.5 | E | Water and oil cooling | 160 | 1–1.5 | 1200 × 1200 × 1850 | 180 |
| WS3K89 | 2.5 | 380 | 7 | 3 | E | Water and oil cooling | 89 | 0.2–0.5 | 850 × 750 × 100 | 150 |
| WS7K190 | 2 | 380 | 10 | 3 | E | Water and oil cooling | 190 | 5–10 | 1000 × 950 × 1550 | 510 |
| WS7K250 | 3 | 380 | 18 | 7 | E | Water and oil cooling | 250 | 10–25 | 1320 × 1200 × 1850 | 1050 |
| WS7K300 | 3 | 380 | 18 | 7 | E | Water and oil cooling | 300 | 10–30 | 1300 × 1400 × 1900 | 1070 |
| WS11K250 | 3.5 | 380 | 20 | 11 | E | Water and oil cooling | 250 | 10–25 | 1320 × 1200 × 1850 | 1210 |
| WS20K400 | 3.5 | 380 | 37 | 20 | E | Water and oil cooling | 400 | 20–60 | 1850 × 1600 × 1850 | 3000 |
Product details
Product introduction
Magnetic slurry machine, It belongs to the upper feed, Single drum wet magnetic separator.High magnetic field, Uniform magnetic field distribution, High gradient, The effect of iron removal is obvious; The cooling system USES forced water cooling to dissipate heat, Good circulation, You can lower the temperature by about 20c, Extended the service life of electromagnetic wire, The drive valve USES imported material, The valve body is strong and durable, No residual pulp overflow after closing; Removal of iron by vibration and high pressure water pump flushing, Rinse thoroughly, No residue; The mesh pieces are refined from special materials, There is no remanence after the power of the exciting coil is cut off, Easy to take off the iron, No manual operation is required for fully automatic operation, Iron removal is convenient and fast, No residue at all.
Operation process
Power on device, Open the pulp inlet valve and the pulp outlet valve and close the pulp return valve and iron discharge valve, Turn on the magnetizing device.When all slurry passes through the material magnetic separator, Close the inlet and outlet valves, Open the backgrouting valve and drain the remaining slurry from the magnetic separator through the backgrouting valve, Then break the magnetic, Shut down grouting valve, Pulp discharge valve and pulp return valve, Open the drain valve, The removal of iron from the magnetic medium.
Scope of application
Magnetic paste magnetic separator is widely used to remove ceramics, Mining, chemistry, electronics, Iron powder found in raw materials from food and other industries, Microiron and magnetic materials.
