Electromagnetic Bentonite Powder Magnetic Separator by PTMS (Foshan Powtech). Dry electromagnetic separators for free-flowing powders such as quartz powder, feldspar powder, bentonite, lithium battery cathode and anode materials, graphite and activated carbon.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
The only published figure for the Electromagnetic Bentonite Powder Magnetic Separator is a magnetic field strength of 18000–35000 Gauss (stated in the product description); capacity, power, voltage, cooling and dimensions are confirmed for your application. Dry electromagnetic separators for free-flowing powders such as quartz powder, feldspar powder, bentonite, lithium battery cathode and anode materials, graphite and activated carbon.
| Model | Magnetic field strength (Gauss) | Capacity / throughput | Coil or motor power | Input voltage | Cooling method | Dimensions & weight |
|---|---|---|---|---|---|---|
| Electromagnetic Bentonite Powder Magnetic Separator | 18000–35000 | Contact us for specs | Contact us for specs | Contact us for specs | Contact us for specs | Contact us for specs |
Other specifications for this item are not yet published. Contact us for specs. We configure each machine for your material after a free sample test.
Product details
Electromagnetic Bentonite powder Magnetic Separator
One of the major roles of bentonite in ceramics is the use of high whiteness ceramic glazes as a plastic filler after sintering. Bentonite has increased sintering properties. The plasticity and strength of the ceramic are not prone to cracking of the glaze and the glaze after sintering is smooth. Bentonite is also used as a plasticizer and tackifier to provide strength, plasticity and high adhesion to the ceramic raw material supporting glaze. In the ceramic production operation, bentonite can not only increase the plasticity and strength of the ceramic body or glaze, but also have strong suspension and thixotropic properties, and the lubricating effect of the bentonite is more favorable for grinding.
Product description

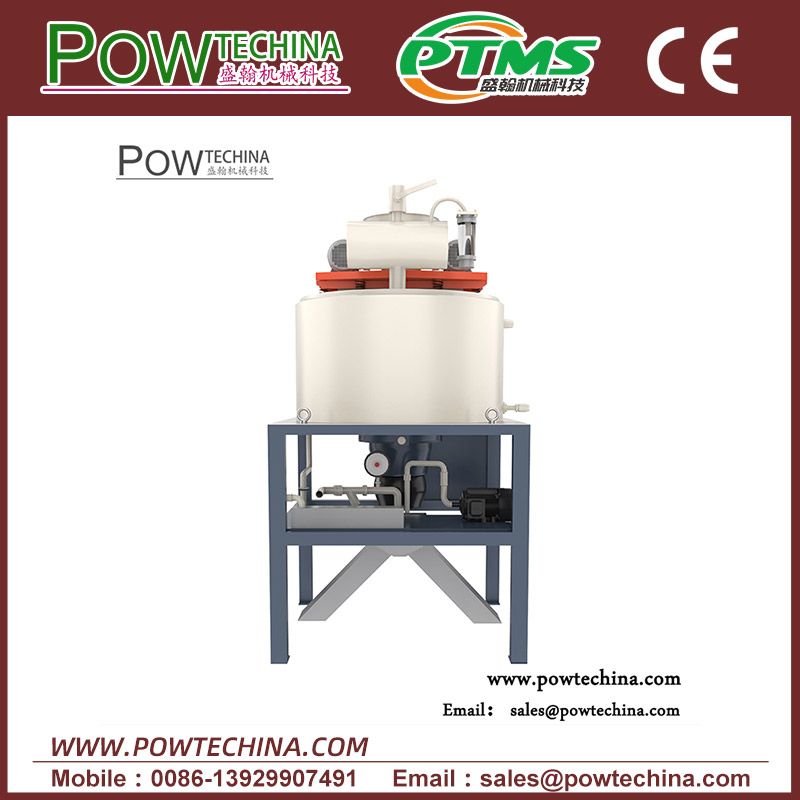

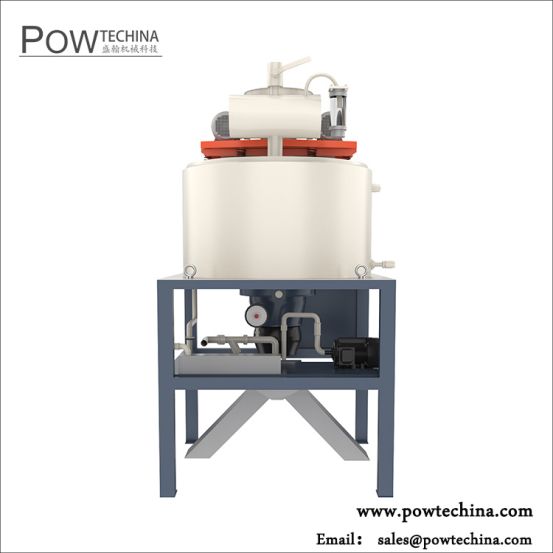

Electromagnetic bentonite powder magnetic separator, The magnetic system features large wrap angle and multiple magnetic poles. The absolute value of the magnetic flux density in the machine selection area is relatively average. Different field strengths can be designed according to the nature of the ore. When the non-magnetic minerals are separated from the magnetic field, under the action of gravity, The mineral can be well separated from the magnetic cylinder; and the electromagnetic dry powder machine adds a mechanical vibration device, which not only improves the iron removal effect, but also can easily achieve complete removal of iron impurities.
Electromagnetic bentonite powder magnetic separator is especially suitable for selecting fine-grained mineral powder particles. Such as non-metallic mineral feldspar powder, bentonite powder, quartz powder, kaolin powder and other minerals, iron and titanium impurities, as well as ceramics, chemicals, medicine, electronics, positive and negative materials, graphite, white carbon and other powder materials.
Magnetic field strength up to 18000-35000GS
Product advantages
- Water and oil dual cooling,stable performance.
- Intelligent control,there is no need to manual operation.
- New magnetic medium material,better separation of iron.
- Small machine footprint and easy maintenance.
